CHASSIS

Brake Lever Guard

WHERE TO BUY

Product Variation

Gray (φ14)

Parts No.697-002-5400

Gray (φ16)

Parts No.697-002-5600

Red (φ14)

Parts No.697-002-1400

Red (φ16)

Parts No.697-002-1600

Gold (φ14)

Parts No.697-002-6400

Gold (φ16)

Parts No.697-002-6600

Blue (φ14)

Parts No.697-002-2400

Blue (φ16)

Parts No.697-002-2600

Green (φ14)

Parts No.697-002-7400

Green (φ16)

Parts No.697-002-7600

Product Description

・It is obligated to use brake lever guard by some race regulations in order to prevent unexpected braking by touching other vehicles.
・5 color variations are available.
・Inner assy size 14mm is compatible with handle bar inner diameter 14 to 15.5mm.
・Inner assy size 16mm is compatible with handle bar inner diameter 16 to 18.7mm.
・Plastic arm is adjustable by 2 positions to adjust clearance between brake lever and lever guard.

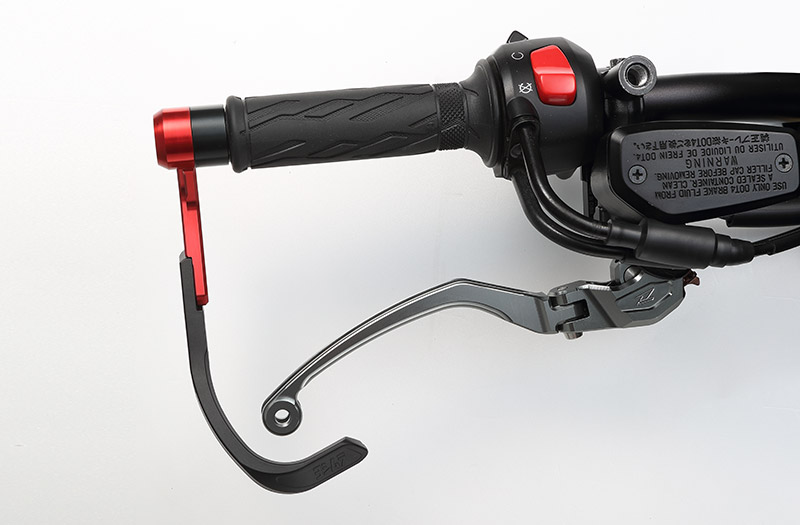

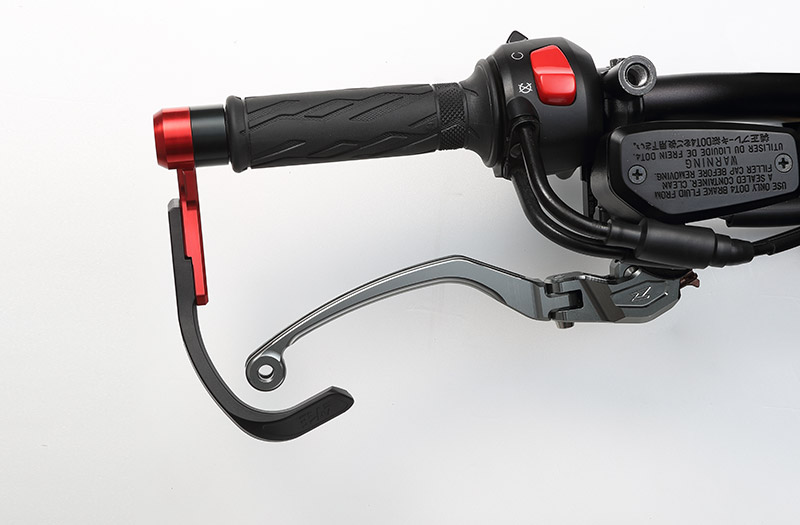

<Adjustable 2 Positions>
Position Short : 120mmPosition Long : 145mm
<The design of the brake lever guard is derived from the Yoshimura racer>

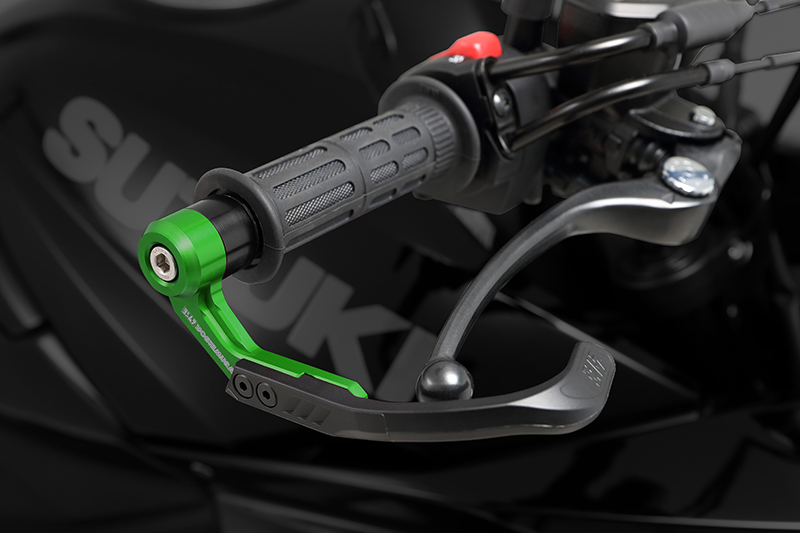

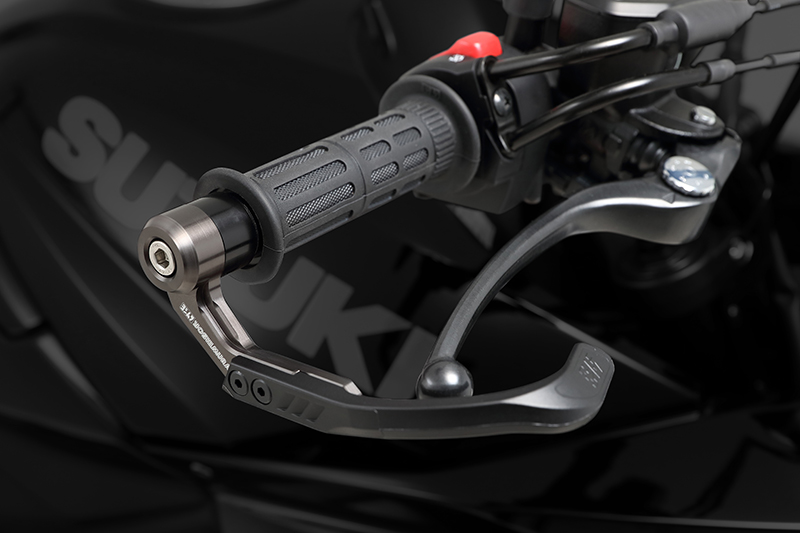

<Fitting Images>

Following vehicles are confirmed the fitment.

SUZUKIYearSize
GSX-R10002016φ16
KATANA2019-2021/2022-2024φ16
GSX-S10002021φ16
2015-2020φ16
GSX-S1000F2015-2020φ16
GSX-S1000GT2022-2024φ16
V-Strom10002019φ16 ※2
SV650(ABS)2016-2021/2022φ16
GIXXER SF2502019/2023φ16
V-Strom2502019φ16 ※2
GSX-R1252018-2022/2023Use M6x12.5 washer and M6(40mm) bolt.
HONDAYearSize
CBR1000RR-R2021φ16
CBR650R2020φ16
CB400SF2020φ16
CBR250RR2017-2020φ16
YAMAHAYearSize
YZF-R32014φ16
MT-032018φ16
YZF-R252014-2019φ16
XMAX2502022φ16
XSR1552019φ16
YZF-R152023φ16
YZF-R1252023φ16
MT-1252023φ16
XSR1252024φ16
KawasakiYearSize
Ninja6502021φ16
MV AGUSTAYearSize
F3 800 RC2020φ16
F3 6752014φ16

<Related Product>
Brake Lever Guard for Kawasaki
Brake Lever Guard for GSX-R1000/R(17-)
Brake Lever Guard for Hayabusa

Instruction Manual

Compatible models & model years

GSX-R10002016
SV6502016 / 2017 / 2018 / 2019 / 2020 / 2021 / 2022
CB1300SB2021
CB1300SF2021
CB400SF2020
MT-032018
CBR250RR2017 / 2018 / 2019 / 2020
Ninja6502021
V-Strom1000 ABS2019
YZF-R252014 / 2015 / 2016 / 2017 / 2018 / 2019
YZF-R32014
GSX-S10002015 / 2016 / 2017 / 2018 / 2019 / 2020 / 2021
GSX-S1000F2015
V-Strom1000 XT ABS2019
V-Strom2502019
GSX-R1252018 / 2019 / 2020 / 2021 / 2022 / 2023
KATANA2019 / 2020 / 2021 / 2022 / 2023 / 2024
F3 6752014
F3 8002020
XSR1552019
GIXXER SF2502019 / 2020 / 2021 / 2022 / 2023
XMAX2022
CBR650R2020
CBR1000RR-R2021
CYGNUS GRYPHUS2022
GSX-S1000GT2022 / 2023 / 2024
MT-1252023
YZF-R1252023
YZF-R152023
XSR1252024

×
