ENGINE

Oil Filler Cap Type-FB(M20xP2.5mm)

WHERE TO BUY

Product Variation

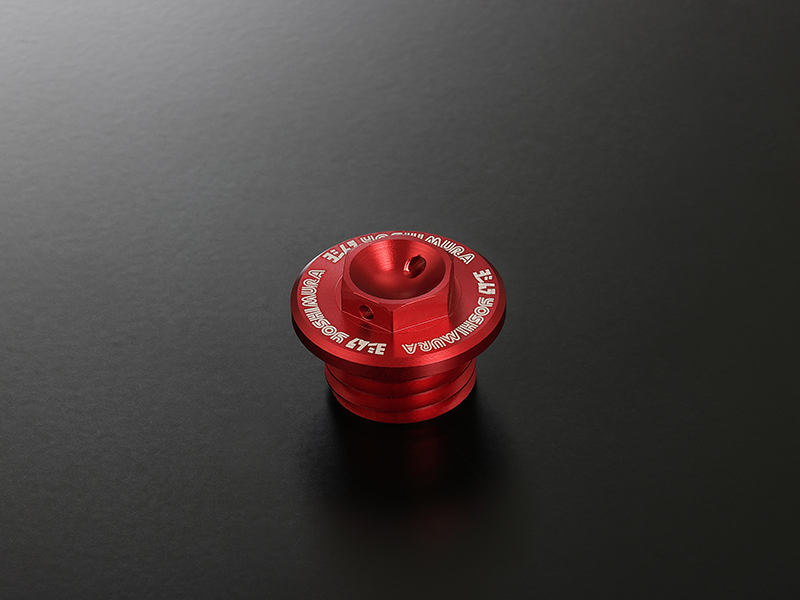

Red

Parts No.229-020-9R00

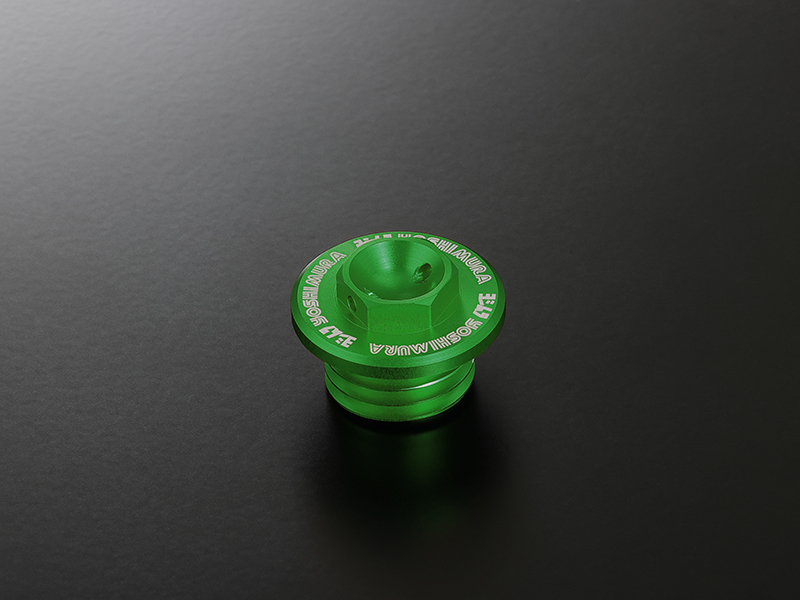

Green

Parts No.229-020-9M00
DISCONTINUED PRODUCT

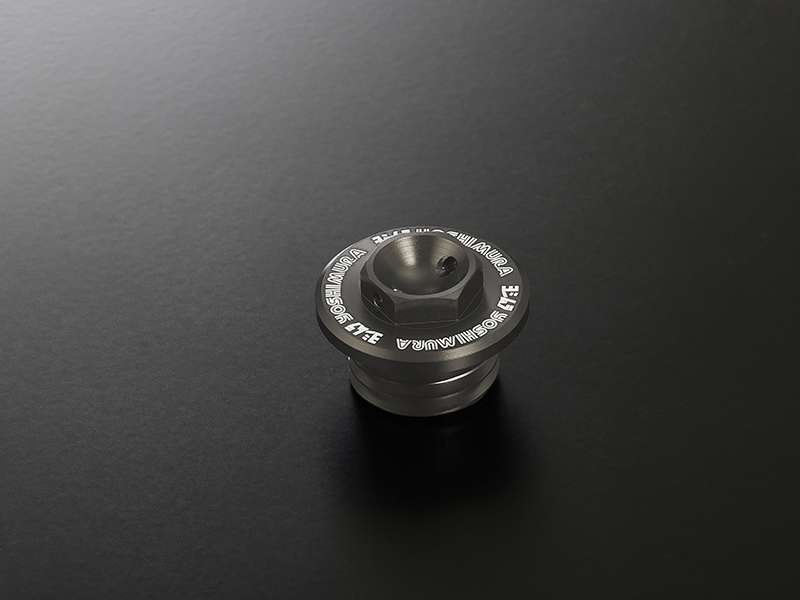

Slate Gray

Parts No.229-020-9S00

Product Description

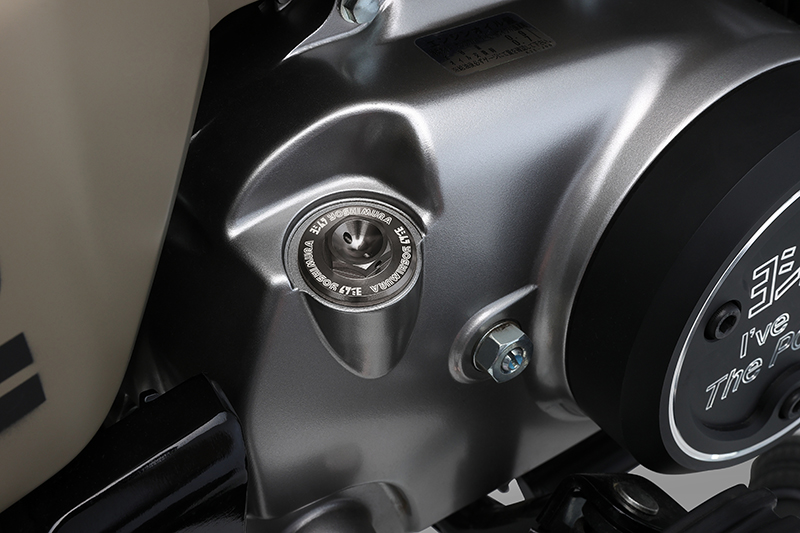

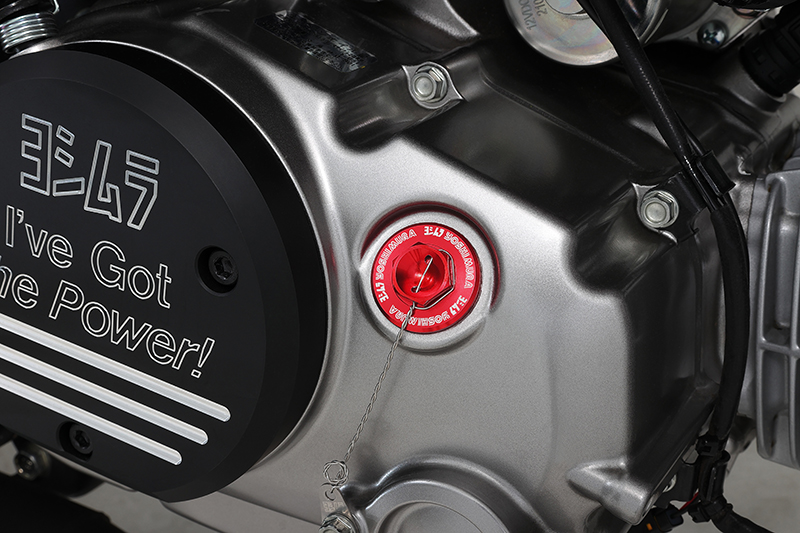

Aluminum CNC machined oil filler cap with safety wire lock holes.
When installing this product, it is required to replace O-ring from stock filler cap.
The design and material are exactly same as what Yoshimura GSX-R1000 race bike uses.

<Specification>
Main Material Aluminum
Nut Diameter/Pitch M20xP2.5mm
Other method 2 safety wire lock holes
Monkey125CT125
GROM
<Application>
Kawasaki
Z900RS/CAFE2018-2022/2023-2024
Z9002020-2021
Z650RS2022
Ninja6502021
ELIMINATOR2024
Ninja4002014-2024
Ninja ZX-4R SE/RR2023
Ninja2502018-2024
Ninja250SL2015-2016
Ninja ZX-25R2020-2024
HONDA
CB11002012-2020
CBR1000RR2008-2011
NC700S/X2013-2019 (*)
NC750S/X2013-2019 (*)
CBR650R2019-2020 (*)
CBR650F2014-2016 (*)
CBR600RR2007-2008
CB400SF2009-2020
GB350/S2021-2023 (*)
CBR250RR2023
2017-2020
CRF250L2017-2021/2023
CRF250RALLY2017-2021/2023
CRF250M2017-2021
CL2502023
FORZA2021-2022/2023 (*)
Rebel 2502023
CB125R2021 (*)
2018-2020 (*)
Monkey1252019
GROM/MSX1252023
2021
2013-2016 (*)
CT1252020-2022/2023
Super Cub C1252019-2020/2021 (*)
Super Cub 1102022
Cross Cub(50,110)2018-2021/2022(*)
PCX1602021 (*)
PCX1502012-2020 (*)
PCX2012-2021 (*)
APE1002009 (*)
DAX1252023
DAX701994 (*)
YAMAHA
WR250R,X2007-2017
WR155R2023 (*)
YZF-R152023 (*)
YZF-R1252023 (*)
MT-1252023 (*)
XSR1252023 (*)
NMAX2021 (*)
Majesty-S2014-2020 (*)
CYGNUS X2015-2021 (*)
(*)…Model which has oil gauge on the genuine oil filler cap.
Require genuine oil filler cap to check oil level.

<Optional Part>

Safety Wire Lock Bracket Set

<Other Line up>
Oil Filler Cap Type-FA (M20xP1.5mm)
Oil Filler Cap Type-FC (M27xP3.0mm)
Oil Filler Cap Type-FD (M30xP1.5mm)

Instruction Manual

Compatible models & model years

CB400SF2009 / 2010 / 2011 / 2012 / 2013 / 2014 / 2015 / 2016 / 2017 / 2018 / 2019 / 2020
CYGNUS X (FI)2015 / 2016 / 2017 / 2018 / 2019 / 2020 / 2021
CB11002012 / 2013 / 2014 / 2015 / 2016 / 2017 / 2018 / 2019 / 2020
CBR250RR2017 / 2018 / 2019 / 2020 / 2021 / 2022 / 2023
PCX2012 / 2013 / 2014 / 2015 / 2016 / 2017 / 2018 / 2019 / 2020 / 2021 / 2022 / 2023
CRF250L2017 / 2018 / 2019 / 2020 / 2021 / 2023
Ninja6502021
Ninja2502018 / 2019 / 2020 / 2021 / 2022 / 2023 / 2024
GROM2013 / 2014 / 2015 / 2016 / 2021 / 2022 / 2023
MAJESTY S2014 / 2015 / 2016 / 2017 / 2018 / 2019 / 2020
Ninja4002014 / 2015 / 2016 / 2017 / 2018 / 2019 / 2020 / 2021 / 2022 / 2023 / 2024
Z9002020 / 2021
CRF250 RALLY2017 / 2018 / 2019 / 2020 / 2021 / 2022 / 2023
Z900RS2018 / 2019 / 2020 / 2021 / 2022 / 2023 / 2024
Z900RS CAFE2018 / 2019 / 2020 / 2021 / 2022 / 2023 / 2024
Monkey1252018 / 2019 / 2020 / 2021
Super Cub C1252019 / 2020 / 2021
CB125R2018 / 2019 / 2020 / 2021
Cross Cub1102018 / 2019 / 2020 / 2021 / 2022
Super Cub1102022
CT1252020 / 2021 / 2022 / 2023
Ninja ZX-25R2021 / 2022 / 2023 / 2024
CBR650R2019 / 2020
PCX1602021 / 2023
Z650RS2022 / 2023 / 2024
CYGNUS GRYPHUS2022
GB3502021 / 2022 / 2023
GB350S2021 / 2022 / 2023
Dax1252023
Ninja ZX-4R SE/RR2023
ELIMINATOR2024
MT-1252023
YZF-R1252023
YZF-R152023
Rebel 2502023
XSR1252024
CBR250RR2017 / 2018 / 2019 / 2020 / 2021 / 2022 / 2023

×
