OPTIONAL EXHAUST PIPE

GSX-S1000
KATANA
GSX-S1000GT

Product Variation

OPTIONAL EXHAUST PIPE Parts No.194-19E-0011	Weight(STD9.6kg) 4.4kg

Compatible models & model years

GSX-S1000	2021 / 2022 / 2023 / 2024
KATANA	2021 / 2022 / 2023 / 2024
GSX-S1000GT	2022 / 2023 / 2024
GSX-S950	2022

Product Description

* Optional exhaust pipe to make Yoshimura R-77S slip-on to be a full system.
* Require Yoshimura R-77S Slip-on (P/N. 1F0-19E-5W**)

CAUTION!!!
In combination with Optional Exhaust Pipe, EEC Approval number on the R-77S Slip-on (P/N. 1F0-19E-5W**) is not valid.
This product is developed for track-day use or for areas where it is not necessary to use a fully legal exhaust.

<APPLICABLE MODEL>
SLIP-ON R-77S / EURO5

Max Gain: Power		+4.6% / 6,700rpm
Max Gain: Torque		+4.6% / 6,700rpm
Weight Reduction	Exhaust Pipe	-5.2kg (-54.2%)
	Full System	-5.5kg (-46.2%)

Static Noise Decibel : dB/
Measured at : rpm

100dB / 5,500rpm
(STD 96dB)

Main Material

Stainless Steel

Note: The above test data is checked with Optional Exhaust Pipe and R-77Slip-On together.


Optional Exhaust Pipe which is developed to use with Yoshimura R-77S Slip-on (P/N. 1F0-19E-5W**)

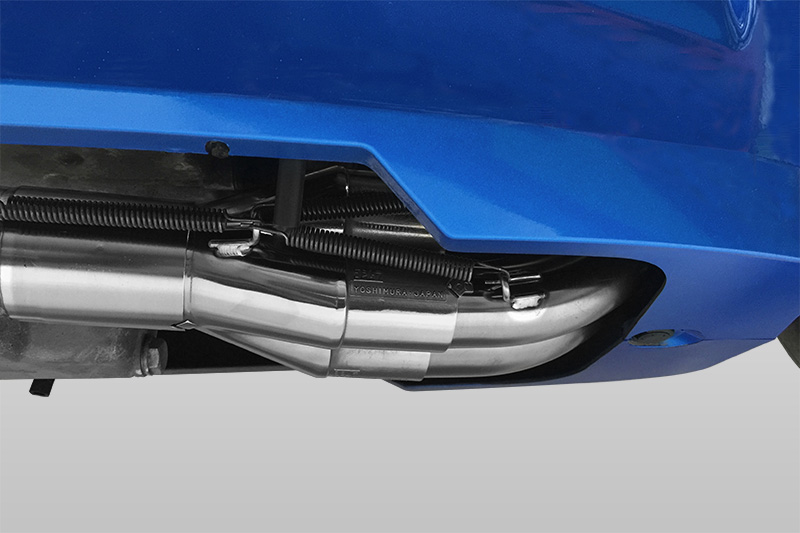

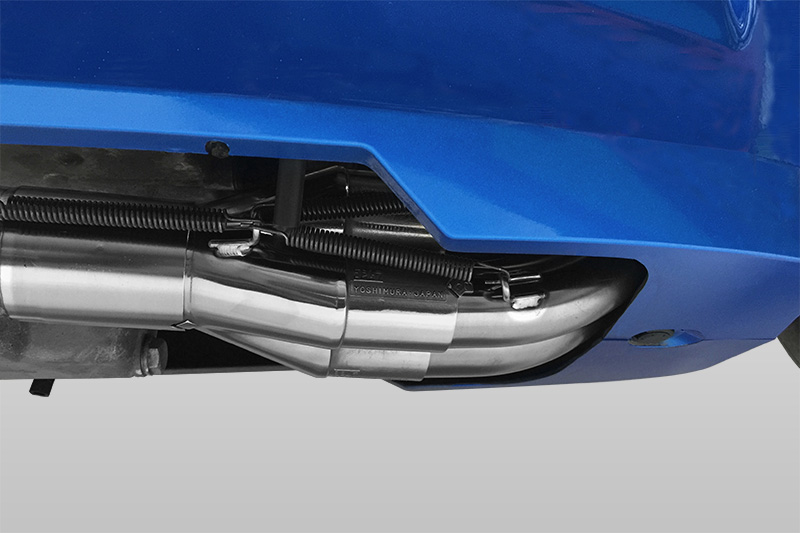

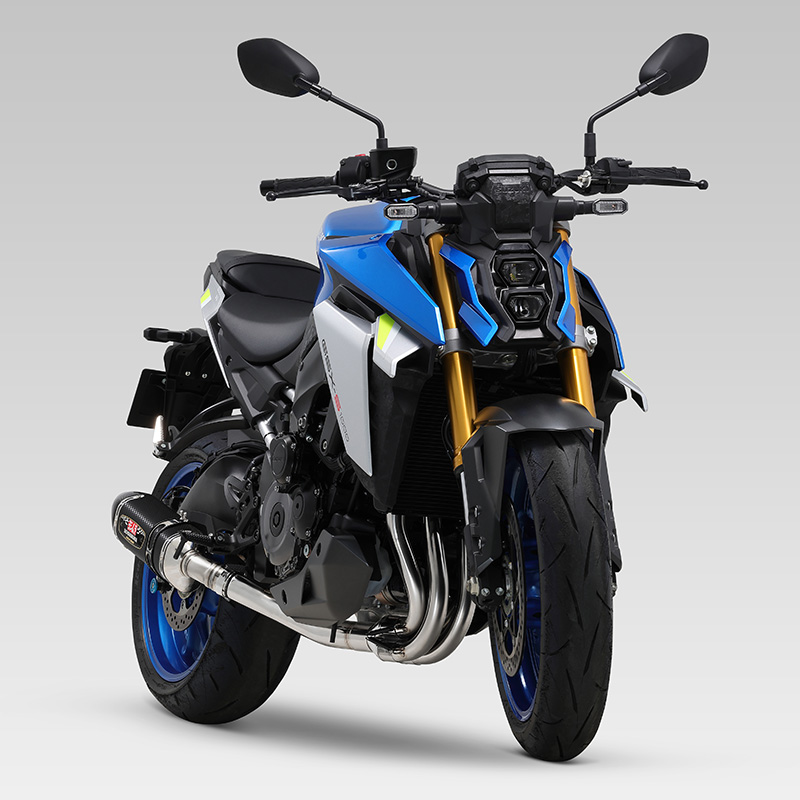

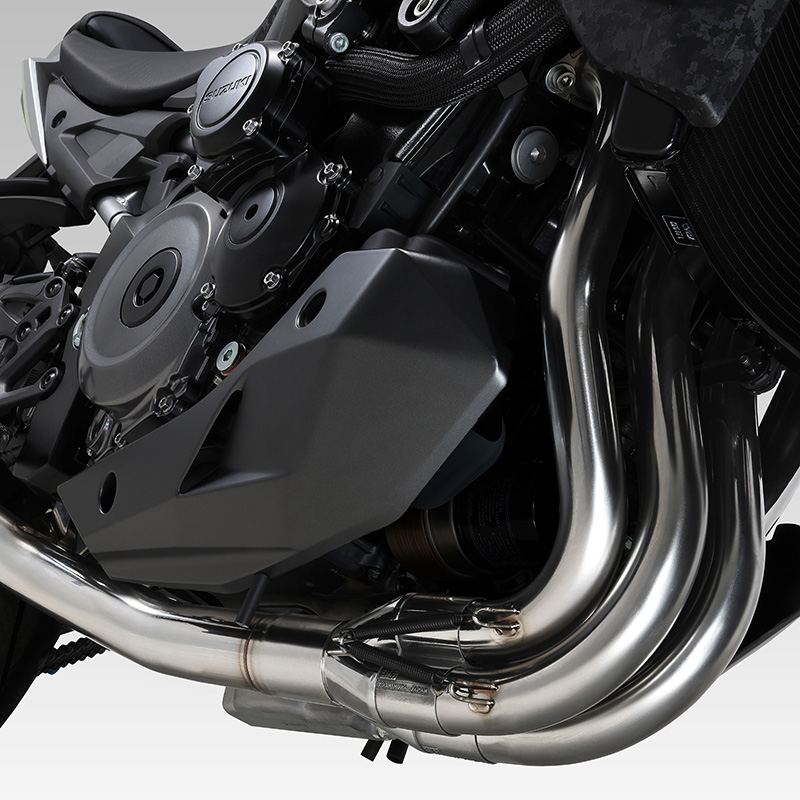

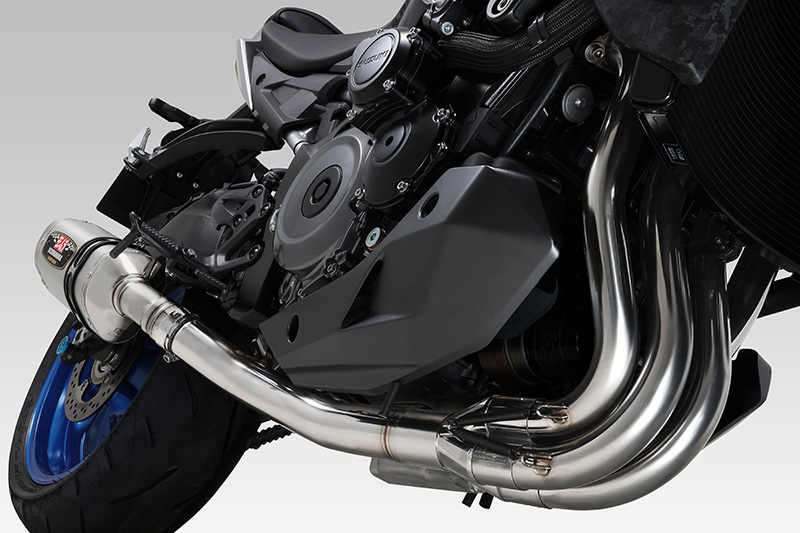

View from front bottom	View from front

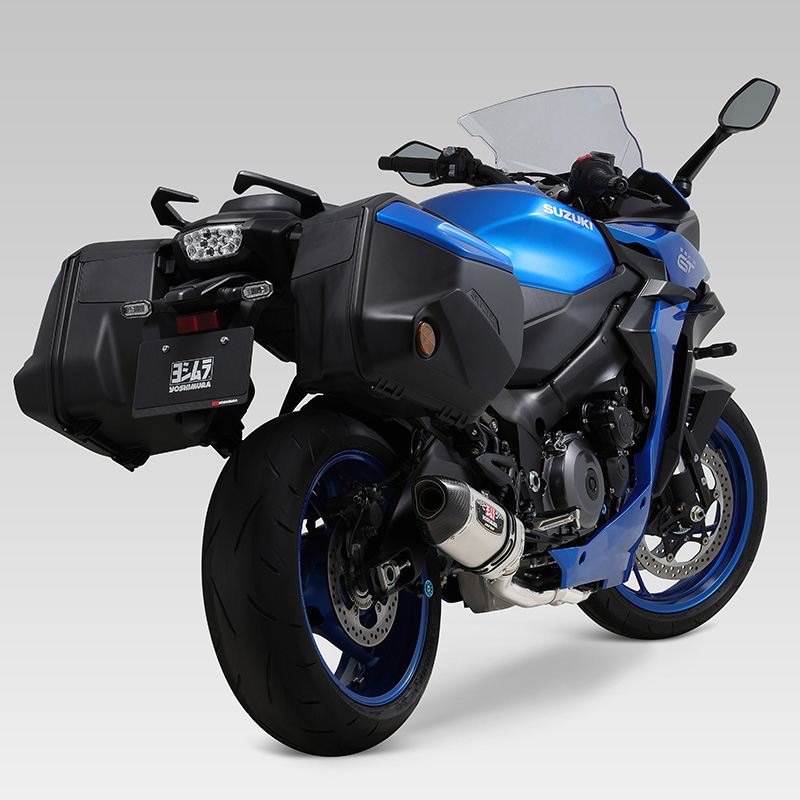

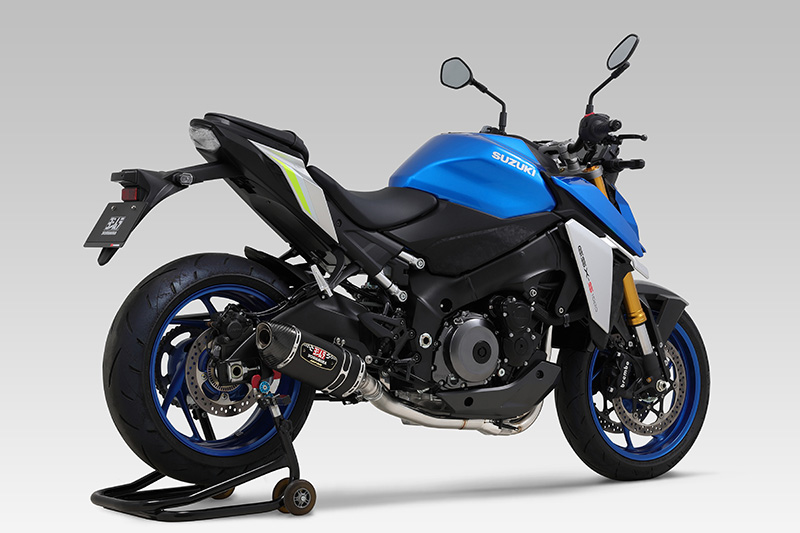

View from back	View from back (with side panniers)

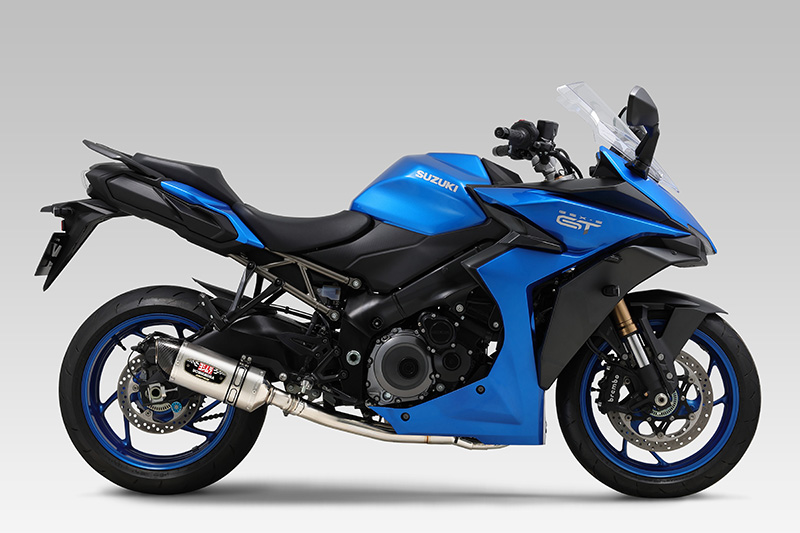

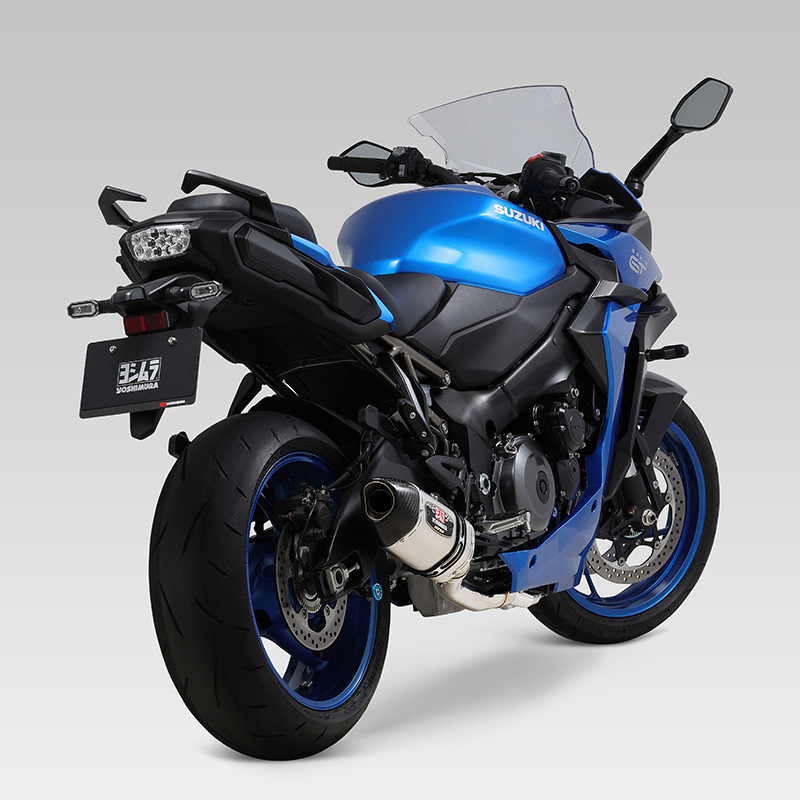

View from side	View from rear

GSX-S1000GT:
Possible to use this product with side pannier.
Modification of under fairing might be required. (When clearance between exhaust pipe and fairing is too close.)
